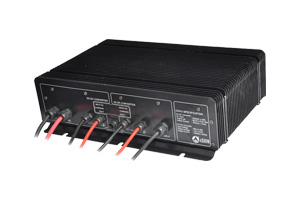

This Combined Unit contains a 3KW Battery Charger along with I KW DC-DC Converter to fulfill all kinds of
charging and auxiliary power requirements of Electric CarsNans. It is engineered to meet specific requirement of
Electric Mini Buses as well. This CCDU is designed for 72V/48V battery systems with inbuilt CAN communication.
Efficient, Cost effective, compact in size and light in weight are its USP's.
Salient Features :
-Both the Charger and DC-DC can operate at a time with a maximum power of 4.0KW constant
-Over Temperature protection .
-Circuit designed with over voltage and under voltage protections .
-Battery reverse polarity protection .
-Battery Deep Discharge protection .
-Overload and short circuit protection .
-Designed to meet adverse Indian road and climatic condition .
-Aluminum alloy cabinet with good heat dissipation and shock absorption.
-Designed for high efficiency with resonance topology .
|
|
 |
| |
|
 |
|
| Charger Specifications : |
| AC Input |
|
DC Input |
|
| AC Input Voltage - range |
170 - 300VAC |
DC Input Voltage - range |
65 - 95VDC(48VDC also available) |
| AC Input Voltage - nominal |
230 VAC |
DC Input Voltage - nominal |
72VDC |
| Power Factor |
>0.95 |
DC Input Current - maximum |
17A |
| AC Input Current - maximum |
16 A |
|
|
| DC Output |
|
DC Output |
|
| DC Output Voltage Nominal |
72VDC / (48VDC also available) |
DC Output Voltage |
13.8VDC+_0.4V |
| DC Output Voltage Maximum |
95VDC |
DC Output Power |
1000 Watts |
| DC Output Current |
30Amp |
DC Output Current |
72Amp |
| DC Output Power Nominal |
2700 Watts |
DC Output Line &Load Regulation |
Tolerance +_ 2% at cable |
| DC Output Line &Load Regulation |
Tolerance +_ 2% at cable |
Efficiency |
>90% |
| Efficiency |
>90% |
|
|
| Protections |
|
Protections |
|
| Output over load |
Available |
Output over load |
Available |
| Output short circuit |
Available |
Output short circuit |
Available |
| Output over voltage |
Available |
Output over voltage |
Available |
| Over Temperature |
Available |
Over Temperature |
Available |
| Battery reverse |
Available |
Battery reverse |
Available |
| Communication |
|
Communication |
|
| CAN |
Available |
CAN |
Available |
| Hardware Enable |
Available |
Hardware Enable |
Available |
| Environmental |
|
Environmental |
|
| Operating Temperature |
0°C to +50°C |
Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-10°C to +60°C |
Storage Temperature |
-10°C to +60°C |
| Mechanical |
|
| Enclosure |
Aluminum Enclosure with Water Proof (IP65) |
| Dimensions |
L= 455mm, H=125mm, W=348mm |
| Dimensions |
18.0Kgs |
| Wiring (Input & Output) |
Input:2.5sq three core cable, Output : Red(+ve), Black(-ve)
|
| DC input & output connector |
As per requirement |
| |
|
|
|
