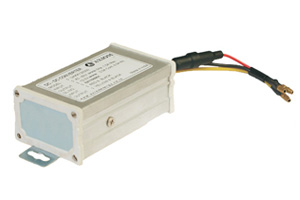

DC-DC converter is designed to fulfill all kinds of power requirements of
Electric vehicles.it is engineered to meet specific requirement of Electric
Bikes.it is powered through Electric Bike battey rating from 43VDC to 60VDC.
Effective,compact in size and light in weight.
Salient Features :
- Designed to meet adverse Indian power condition.
- Aluminium alloy cabinet with good heat dissipation and shock absorption.
- Circuit designed with over voltage and low voltage.
- Best performance due to high Efficiency PWM.
- Battery reverse polarity protection.
- Overload protection. |
|
 |
| |
|
 |
|
| Specification : |
| DC Input |
|
|
| DC Input Voltage - range |
43 - 60VDC |
|
| DC Input Voltage - nominal |
48VDC |
|
| DC Input Current - maximum |
1.5A |
|
| DC Output |
|
|
| DC Output Voltage - |
12.0VDC±0.4V |
|
| DC Output Current - |
3.0Amp cont. |
|
| DC Output peak Current |
8.0Amp peak |
|
| DC Output Line & Load Regulation |
Tolerance±2% at cable |
| DC Ripple / Noise |
<250mV / <1000mV Pk-Pk |
| Protections |
|
| Output over load |
Available |
| Output short circuit |
Available |
| Output over voltage |
Available |
| Battery reverse |
Available |
| Environmental |
|
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-10°C to +60°C |
| Regulatory |
|
| Safety |
Designed to meet (IEC60950) |
| EMI |
Designed to meet CISPR 22 / FCC Class-A |
| Mechanical |
|
| Enclosure |
Aluminum enclosure with water proof (IP65) |
| Dimensions |
W= 50mm, H=33mm, D=81mm |
| Weight |
170Grams |
| DC input & output connector |
TIP-13MN 3pole connector |
| Special Features |
|
| Highly reliable standard model |
|
|
