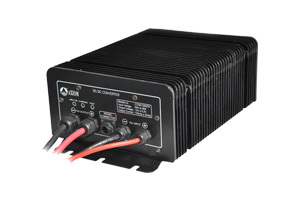

This DC-DC converter is designed to fulfill all kinds of Auxiliary power requirements of Electric Cars/Vans. It is
engineered to meet specific requirement of Electric Mini Buses as well. It has an operating voltage range from
65VDC to 95VDC. Efficient, cost effective, compact in size and light in weight are its USP. This DC-DC converter is
enabled with CAN for onboard communications.
Salient Features :
- Delivers a maximum current of 72A constant.
- Over Temperature protection.
- Circuit designed with over voltage and under voltage protections.
- Battery reverse polarity protection.
- Battery Deep Discharge protection.
- Overload and short circuit protection.
- Designed to meet adverse Indian road and climatic conditions.
- Aluminum alloy cabinet with good heat dissipation and shock absorption.
- Designed for high efficiency with resonance topology. |
|
 |
| |
|
 |
|
| Specification : |
| DC Input |
|
|
| DC Input Voltage - range |
65 - 95VDC / (48VDC also available) |
|
| DC Input Voltage - nominal |
72VDC |
|
| DC Input Current - maximum |
17A |
|
| DC Output |
|
|
| DC Output Voltage - |
13.8VDC±0.4V |
|
| DC Output Current - |
72Amp const. |
|
| DC Output Power Nominal |
1000 Watts |
|
| DC Output Line & Load Regulation |
Tolerance ± 2% at cable |
| Efficiency |
>90% |
| Protections |
|
| Output over load |
Available |
| Output short circuit |
Available |
| Output over voltage |
Available |
| Battery reverse |
Available |
| Over Temperature |
Available |
| Communication |
|
| CAN |
Available |
| Hardware Enable |
Available |
| Environmental |
|
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-10°C to +60°C |
| Regulatory |
|
| Safety |
Designed to meet (IEC60950) |
| EMI |
Designed to meet CISPR 22 / FCC Class-A |
| Mechanical |
|
| Enclosure |
Aluminum Enclosure with Water Proof (IP65) |
| Dimensions |
L= 348mm, H=126mm, W=224mm |
| Weight |
8.3Kgs. |
| Wiring (Input & Output) |
Red (+ve), Black (-ve) |
| DC input & output connector |
As per requirement |
|
|
