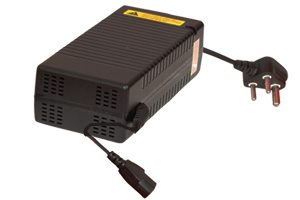

Electric Bike Chargers are designed to fulfill all kinds of power requirements
of Electric Tricycle battery charging which operates in wide AC input range 170-300VAC and to withstand the adverse Indian power conditions These are designed with high frequency switching technology that makes product highly reliable, cost effective,
compact in size and light in weight.
Salient Features :
- Designed to meet adverse Indian power condition.
- Two stage battery charging (CC-CV Float and Boost Mode ).
- Wide Input Operating Range (170VAC -300VAC).
- Accurate Battery Charging Current Limit.
|
|
 |
|
| Specification : |
|
 |
|
| AC Input |
|
|
| AC Input Voltage - range |
170 - 300 VAC |
|
| AC Input Voltage - nominal |
230 VAC rms |
|
| AC Input Frequency |
47 - 53 Hz |
|
| AC Input Current - maximum |
1.8A rms |
|
| DC Output |
|
|
| DC Output Voltage - Float |
54.8VDC±0.4V |
|
| DC Output Voltage - Boost |
58.8VDC±0.4V |
|
| DC Output Current - |
2.60±0.1A |
| DC Output Line & Load Regulation |
Tolerance±2% at cable |
| DC Ripple / Noise |
<600mV / <1200mV Pk-Pk |
| Protections |
|
| Output over load |
Available |
| Output short circuit |
Available |
| Output over voltage |
Available |
| Over temperature with
auto recovery |
Available |
| Battery reverse |
Available |
| Environmental |
|
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-10°C to +60°C |
| Regulatory |
|
| Safety |
Designed to meet (IEC60950) |
| EMI |
Designed to meet CISPR 22 / FCC Class-A |
| Mechanical |
|
| Enclosure |
ABS Plastic |
| Dimensions |
W=72mm, H=45mm, D=153mm |
| Weight |
540Grams |
| AC input connector |
2meter length with 2core , 3pin AC plug |
| DC output connector |
IEC320 2Core cable with 1.2meters length |
|
| Operation |
|
|
| AC input ON /Float |
Green |
|
| Charging |
Red |
|
| Special Features |
|
|
| Highly reliable standard model |
|
|
|
