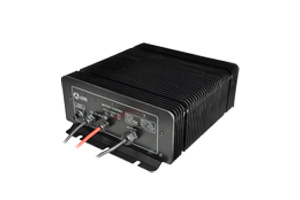

This Battery Charger is designed to fulfill all kinds of charging needs of Electric Cars/Vans. It is engineered to
meet specific requirement of Electric Mini Buses as well. It has an operating voltage range from 170VAC to
300VAC. Efficient, cost effective, compact in size and light in weight are its USP. This Battery charger is enabled
with CAN for onboard communications.
Salient Features :
- Delivers a maximum power of 3.0KW constant.
- Over Temperature protection.
- Circuit designed with over voltage and under voltage protections.
- Battery reverse polarity protection.
- Battery Deep Discharge protection.
- Overload and short circuit protection.
- Designed to meet adverse Indian road and climatic condition.
- Aluminum alloy cabinet with good heat dissipation and shock absorption.
- Designed for high efficiency with resonance topology.
|
|
 |
| |
|
 |
|
| Specification : |
| AC Input |
|
|
| AC Input Voltage - range |
170 - 300VAC |
|
| AC Input Voltage - nominal |
230VAC |
|
| Power Factor |
>0.95 |
|
| AC Input Current - maximum |
16A |
|
| DC Output |
|
|
| DC Output Voltage Nominal |
72VDC / (48VDC also available) |
|
| DC Output Voltage Maximum |
95VDC |
|
| DC Output Current |
30Amp |
| DC Output Power Nominal |
2700 Watts |
| DC Output Line &Load Regulation |
Tolerance ± 2% at cable |
| Efficiency |
>90% |
| Protections |
|
| Output over load |
Available |
| Output short circuit |
Available |
| Output over voltage |
Available |
| Over Temperature |
Available |
| Battery reverse |
Available |
| Communication |
|
| CAN |
Available |
| Hardware Enable |
Available |
| Environmental |
|
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-10°C to +60°C |
| Mechanical |
|
| Enclosure |
Aluminum Enclosure with Water Proof (IP65) |
| Dimensions |
L= 348mm, H=126mm, W=248mm |
| Weight |
8.3Kgs. |
| Wiring (Input & Output) |
Input : 2.5sq three Core Cable, Output : Red
(+ve), Black (-ve) |
| DC input & output connector |
As per requirement |
| |
|
| |
|
| |
|
|
|
|
