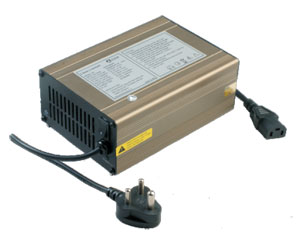

Electric Bike Chargers are designed to fulfill all kinds of power requirements
of Electric Tricycle battery charging which operates in wide AC input range 190-
300VAC and to withstand the adverse Indian power conditions These are designed with high frequency switching technology that makes product highly reliable, cost effective,
compact in size and light in weight.
Salient Features :
- Designed to meet adverse Indian power condition.
- Two stage battery charging (CC-CV Float and Boost Mode ).
- Wide Input Operating Range (190VAC -300VAC).
- Non Resettable Accurate Safety Timer for enhanced Battery protection.
- Accurate Battery Charging Current Limit.
- Battery reverse polarity protection.
- Overload protection.
- Over Temperature shutdown with auto recovery. |
|
 |
| |
|
 |
|
| Specification : |
| AC Input |
|
|
| AC Input Voltage - range |
190 - 270 VAC |
|
| AC Input Voltage - nominal |
230 VAC rms |
|
| AC Input Frequency |
47 - 53 Hz |
|
| AC Input Current - maximum |
2.7A rms |
|
| DC Output |
|
|
| DC Output Voltage - Float |
54.8VDC±0.4V |
|
| DC Output Voltage - Boost |
58.8VDC±0.4V |
|
| DC Output Current - |
4.5A-0.3A |
| DC Output Line & Load Regulation |
Tolerance±2% at cable |
| DC Ripple / Noise |
<600mV / <1200mV Pk-Pk |
| Protections |
|
| Output over load |
Available |
| Output short circuit |
Available |
| Output over voltage |
Available |
| Over temperature with
auto recovery |
Available |
| Battery reverse |
Available |
| Boost charging safety timer |
Available |
| Environmental |
|
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-10°C to +60°C |
| Regulatory |
|
| Safety |
Designed to meet (IEC60950) |
| EMI |
Designed to meet CISPR 22 / FCC Class-A |
| Mechanical |
|
| Enclosure |
Aluminum |
| Dimensions |
W=123mm, H=72.5mm, D=180mm |
| Weight |
1.4Kg |
| AC input connector |
2meter length with 3core , 3pin AC plug |
| DC output connector |
IEC320 2Core cable with 1.2meters length |
|
| Operation |
|
|
| AC input ON LED |
Green |
|
| DC output ON LED |
Red - charge mode, Green -Float mode |
|
| Special Features |
|
|
| Unit will monitor the battery voltage and produce output only when right
battery pack connected. |
|
|
|
