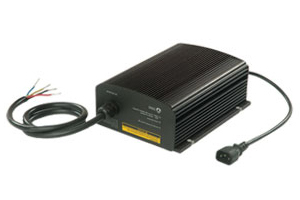

Electric Tricycle Chargers are designed to fulfill all kinds of power requirements
of Electric Tricycle battery charging which operates in wide AC input range 170-
300VAC and to withstand the adverse Indian power conditions These are designed with high frequency switching technology that makes product highly reliable, cost effective,
compact in size and light in weight.
Salient Features :
- Specifically built for onboard operation in harsh automotive environments.
- Fully sealed enclosure provide improved reliability in demanding environments.
- Designed to meet adverse Indian power condition.
- Two stage battery charging (CC-CV Float and Boost Mode ).
- Wide Input Operating Range (170VAC -300VAC).
- Non Resettable Accurate Safety Timer for enhanced Battery protection.
- Accurate Battery Charging Current Limit.
- Battery reverse polarity protection. |
|
 |
| |
|
 |
|
| Specification : |
| AC Input |
|
|
| AC Input Voltage - range |
170 - 300 VAC |
|
| AC Input Voltage - nominal |
230 VAC rms |
|
| AC Input Frequency |
47 - 53 Hz |
|
| AC Input Current - maximum |
4.0A rms |
|
| DC Output |
|
|
| DC Output Voltage - Float |
54.8VDC±0.4V |
|
| DC Output Voltage - Boost |
58.8VDC±0.4V |
|
| DC Output Current - |
7A±0.2A |
| DC Output Line & Load Regulation |
Tolerance±2% at cable |
| DC Ripple / Noise |
<600mV / <1200mV Pk-Pk |
| Protections |
|
| Output over load |
Available |
| Output short circuit |
Available |
| Output over voltage |
Available |
| Over temperature with
auto recovery |
Available |
| Battery reverse |
Available |
| Output Under voltage |
Available |
| Boost charging safety timer |
Available |
| Environmental |
|
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-10°C to +60°C |
| Regulatory |
|
| Safety |
Designed to meet (IEC60950) |
| EMI |
Designed to meet CISPR 22 / FCC Class-A |
| Mechanical |
|
| Enclosure |
Aluminum enclosure with water proof (IP65) |
| Dimensions |
W=178mm, H=82mm, D=145mm |
| Weight |
2.2Kg |
| AC input connector |
2meter length with 3core , 3pin AC plug |
| DC output connector |
IEC320 2Core cable with 1.2meters length |
|
| Operation |
|
|
| AC input ON LED |
Green |
|
| DC output ON LED |
Red - charge mode, Green -Float mode |
|
| Special Features |
|
|
| Unit will monitor the battery voltage and produce output only when right
battery pack connected. |
|
|
|
