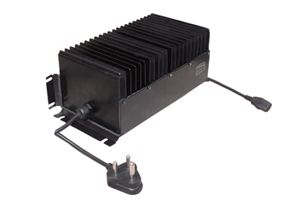

Electric Tricycle Chargers are designed to fulfill all kinds of power requirements
of Electric Tricycle battery charging which operates in wide AC input range 170-
270VAC and to withstand the adverse Indian power conditions These are designed with high frequency switching technology that makes product highly reliable, cost effective,
compact in size and light in weight.
Salient Features :
- Specifically built for onboard operation in harsh automotive environments.
- Fully sealed enclosure provide improved reliability in demanding environments.
- Micro controller based intelligent charger.
- Designed to meet adverse Indian power condition.
- Two stage battery charging (CC-CV Float and Boost Mode ).
- Wide Input Operating Range (170VAC -270VAC).
- Non Resettable Accurate Safety Timer for enhanced Battery protection.
- Accurate Battery Charging Current Limit. |
|
 |
| |
|
 |
|
| Specification : |
| AC Input |
|
|
| AC Input Voltage - range |
170 - 270 VAC |
|
| AC Input Voltage - nominal |
230 VAC rms |
|
| AC Input Frequency |
47 - 53 Hz |
|
| AC Input Current - maximum |
7.0A rms |
|
| DC Output |
|
|
| DC Output Voltage - Float |
68.5VDC±0.4V |
|
| DC Output Voltage - Boost |
73.5VDC±0.4V |
|
| DC Output Current - |
12A±0.2A |
| DC Output Line & Load Regulation |
Tolerance±2% at cable |
| DC Ripple / Noise |
<730mV / <1400mV Pk-Pk |
| Protections |
|
| Output over load |
Available |
| Output short circuit |
Available |
| Output over voltage |
Available |
| Over temperature with
auto recovery |
Available |
| Battery reverse |
Available |
| Output Under voltage |
Available |
| Battery Temparature Compansation |
Available |
| Boost charging safety timer |
Available |
| Environmental |
|
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-10°C to +60°C |
| Regulatory |
|
| Safety |
Designed to meet (IEC60950) |
| EMI |
Designed to meet CISPR 22 / FCC Class-A |
| Mechanical |
|
| Enclosure |
Aluminum enclosure with water proof (IP65) |
| Dimensions |
W=174.4mm, H=136mm, D=346.4mm |
| Weight |
5Kg |
| AC input connector |
2meter length with 3core , 3pin AC plug |
| DC output connector |
2Core cable open terminals with 1.2meters
length |
|
| Operation |
|
|
| AC input ON LED |
Red & Green LEDs glittering |
|
| <80% Battery charging |
Red Led glowing |
|
| >80% Battery charging |
Green Led glowing |
|
| Full charged |
Green Led blinking |
|
| Fault condition |
Red Led blinking |
|
| Special Features |
|
|
| Unit will monitor the battery temperature it will be started Temperature
compensation mode. |
|
|
|
