AIR FLOW STATIONS

The VentLight Blower Unit provides the same functions as the model Vent II. The difference is its slimmer form and the lateral connection to the racks. With this system we offer an optimum allocation of the room while guaranteeing established function and quality. The filter exchange is facilitated due to practical arrangement at the front of the unit.
At the central multi functional display all parameters can be controlled and adjusted:
  • volume flow
  • temperature
  • air humidity
  • pressure
  • airchange rate



All relevant parameters have an alarm function. The alarms can be passed on to the building’s process control system via an external connection.

  • Pre Filter

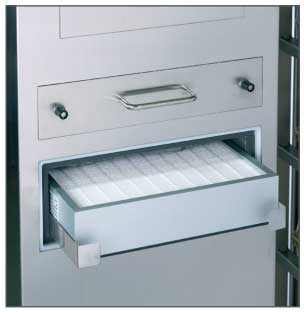

  • Main Filter
  • Bio. A.S. Vent Light Blower Unit
  • Touch Panel
service-3
service-3
service-3
service-3

Capacity :
340 Cages Type 1 L or 250 Cages Type 2 L or 170 Cages Type 3

Electrical connection 230V/50Hz
Electrical Power 0,08-0, 22 kW, average value 0,15 kW/ EC-motors
Thermal output 0,04kW
Pre-filter G4 as per EN 779
Main filter HEPA H14 as per EN 1822
Dimensions W 400 x H 1650 x D 534 mm
Weight 88 kg
Code-No 5144207 S
